What is Proton Freezing?
Worried that frozen food might not taste as good?
Don’t be.
With Proton Freezing, the next-generation freezing technology, you can preserve quality and flavor.
Proton Freezers ensure high-quality freezing without relying on additives.
The ice crystals formed during freezing are smaller, reducing drip during thawing.
This means the food's flavor, aroma, and color are preserved.
Proton Freezing Solves Your Challenges!
-
Recreate the taste of “just-made” or “freshly harvested” anytime,
enabling you to expand your business into
e-commerce, regional, and international markets. -
Purchase ingredients at lower prices and freeze them for long-term storage,
helping to reduce costs. -
Freeze and store products to reduce food waste
and avoid lost opportunities during busy periods. -
Maintain freshness over extended periods
without relying on preservatives. -
Plan production in advance
and stabilize labor costs by eliminating inefficiencies.
FEATURES
Features of Proton Freezing
Why Does It Taste So Good?

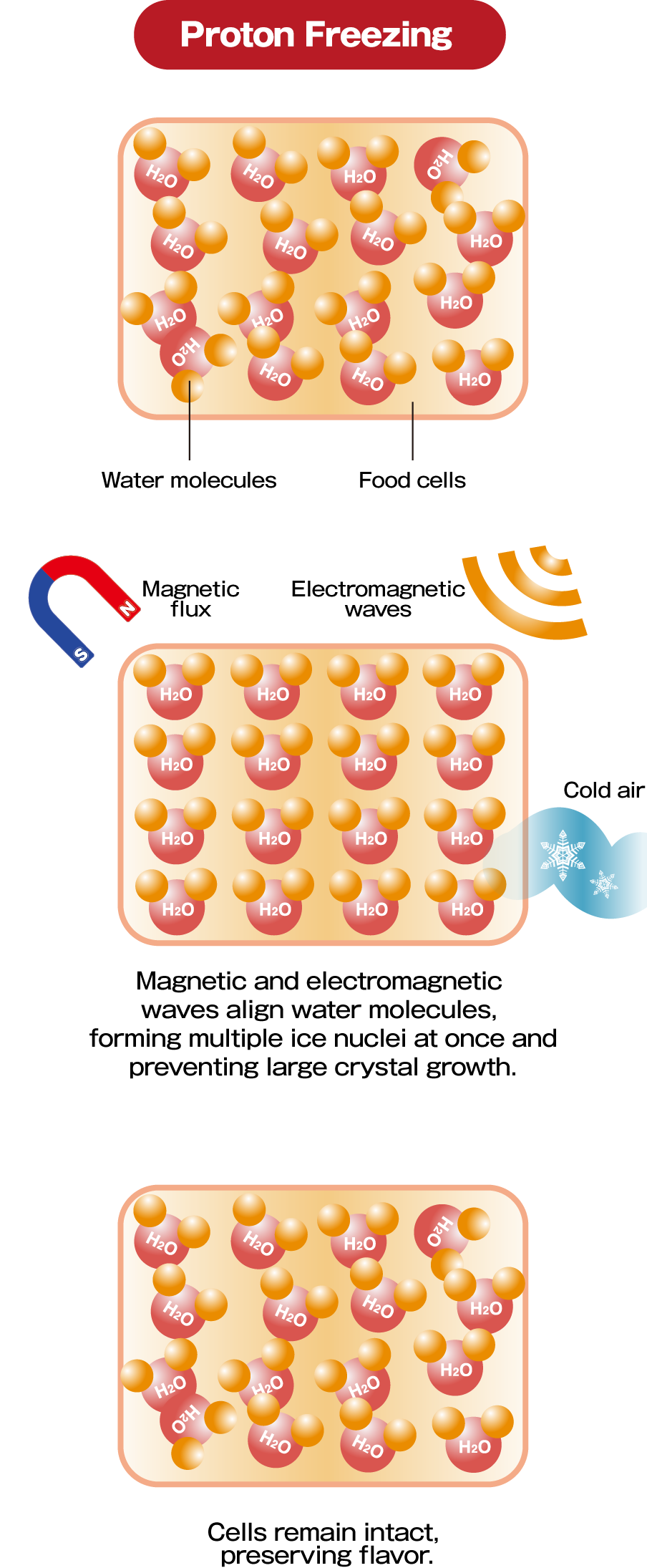

How Proton Freezing Works

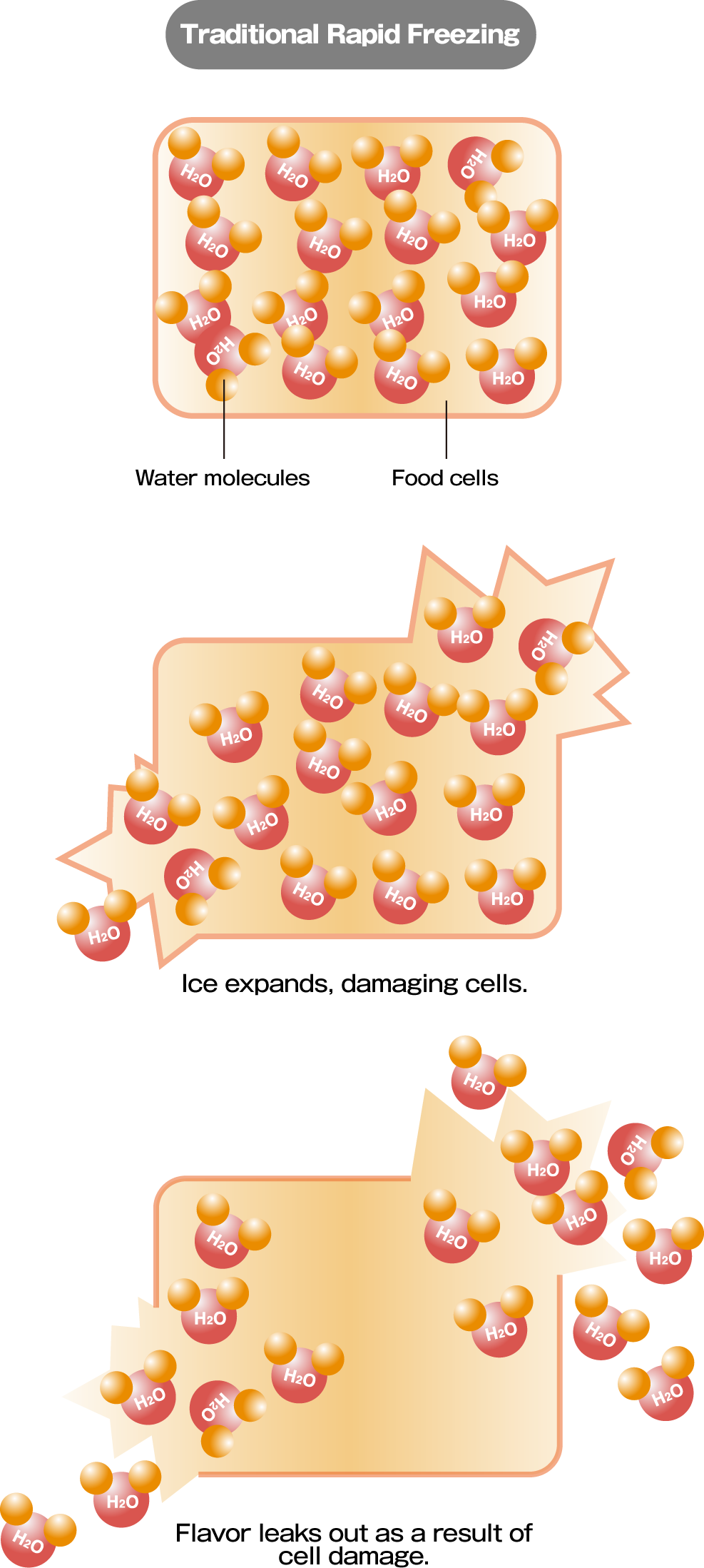

Traditional freezing methods often damage food by expanding water molecules, which rupture cells.
Proton Freezing uses magnetic and electromagnetic waves to align water molecules,
then freezes them rapidly, locking in the food’s flavor and texture.
TESTIMONIALS
Customer Feedback
-
Prepared Foods & Rice Factory
In the past, seasonal items like New Year’s dishes had to be prepared right before the season.
Now, we can mass-produce these items year-round, helping us expand into new sales channels.Examples of Frozen Products:Sushi, Bento, Ready-made Meals, New Year’s Dishes, Bread, Noodles, Soups
-
Dessert Manufacturer
When we first tasted the results, the quality far exceeded our expectations.
Now we can pre-make Christmas cakes and Valentine’s products, aligning with early reservations and significantly increasing sales for popular items.Examples of Frozen Products:Japanese Sweets, Western Sweets (Sponge Cake, Dairy Cream), Mochi
-
Restaurant
Due to fluctuating customer numbers depending on weather and temperature,
we often struggled with daily preparation and sourcing. With Proton Freezers, we only thaw what we need, reducing food waste and lost sales opportunities.
Plus, we can recreate the same "just-made" taste at event venues, which is a huge benefit.Examples of Frozen Products:Sushi, Bento, Ready-made Meals, New Year’s Dishes, Bread, Noodles, Soups
-
Retail Store
As part of our business expansion into online sales and wholesale,
Proton Freezing was exactly the solution we needed for batch cooking in our central kitchen.
It allows us to provide consistent quality in both homes and stores.
The freezing tests were handled quickly and efficiently, which was a great help. Thank you! -
Seafood & Meat Industry
Because freshness is critical in our products, we were amazed when we first tested Proton Freezing.
There was minimal drip, no color change, and the flavor remained excellent.
This has allowed us to expand our business to clients farther away.
We’re also in the process of developing new products, so we look forward to continued collaboration.Examples of Frozen Products:Fresh Fish, Shellfish, Crustaceans, Beef, Pork, Chicken, Ham, Sausages
LINE UP
Product Lineup

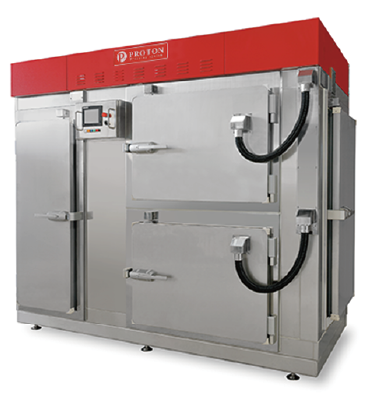

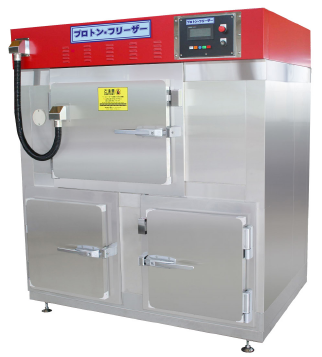

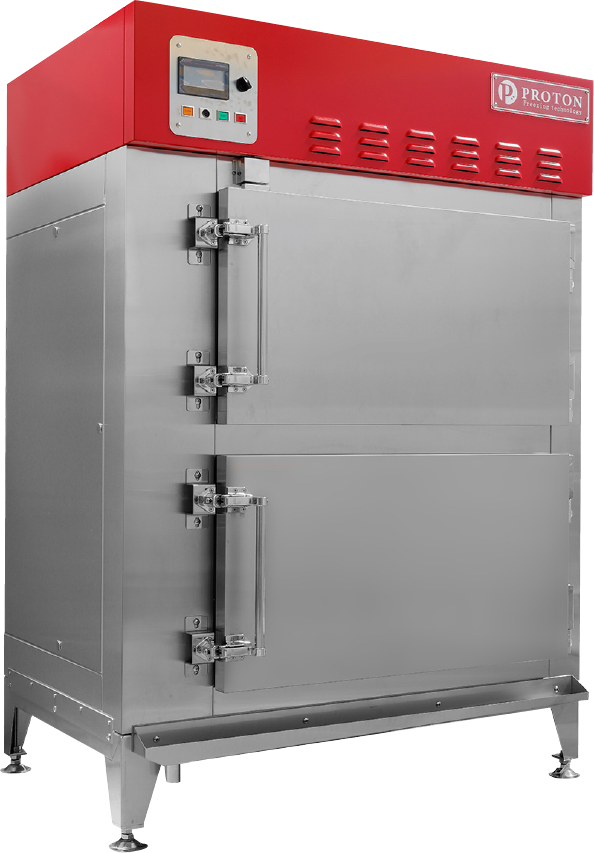

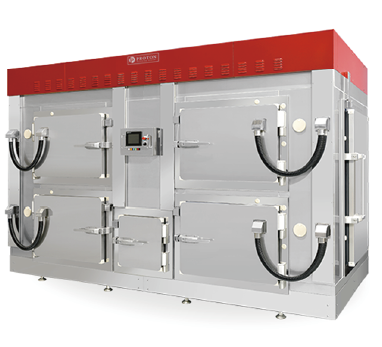

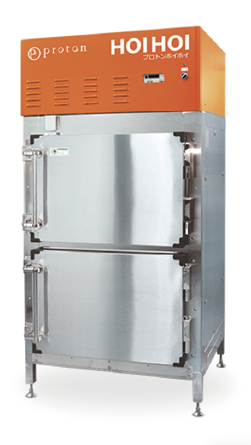

Freezing Machines
| Model Name | Freezing Capacity | Freezing Capacity (W × D × H) |
Interior Dimensions (W × D × H) |
Tray Dimensions (W × D) |
Utility | Remarks |
|---|---|---|---|---|---|---|
|

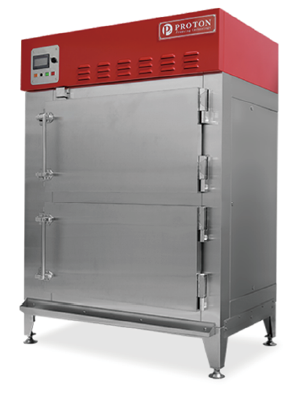

PF-15B
|
15kg/H | 1200×870× 1700mm |
600×400× 350mm |
600×400mm Holds 5–7 trays |
3-phase 200V, 20A | |
|
PF-H3
|
3Kg/H | 900×880× 1850mm |
561×361× 314mm | 530×325mm Holds 4 trays (1/1 hotel pan size) |
3-phase 200V, 20A | 240L freezer storage |
|
PF-30
|
30kg/H | 1660×1205× 1830mm |
600×400× 190mm× 2units |
600×400mm Holds 8–12 trays |
Electric: Indoor unit rated 1kW (3-phase 200V) Outdoor unit rated 6.5kW (3-phase 200V) |
Water supply: 0.2MP, 25A (indoor unit with water spray defrost) |
|
PF-60
|
60kg/H | 2300×1250× 2065mm |
800×600× 190mm× 4units |
600×400mm Holds 16–24 trays |
Electric: Indoor unit rated 2kW (3-phase 200V) Outdoor unit rated 10kW (3-phase 200V) |
Water supply 0.2MP, 25A × 2 systems (indoor unit with water spray defrost) |
|
PF-150
|
150kg/H | 3400×1904× 2320mm |
600×1200× 190mm× 2 units × 4 rooms |
600×600mm Holds 32–48 trays |
Electric: Indoor unit rated 3.7kW (3-phase 200V) Outdoor unit rated 22kW (3-phase 200V) |
Water supply 0.2MP, 25A × 2 systems (indoor unit with water spray defrost) |
Defrosters
| Model Name | Features | Dimensions (W × D × H) |
Interior Capacity Dimensions (W × D × H) |
Utility | Remarks |
|---|---|---|---|---|---|
|

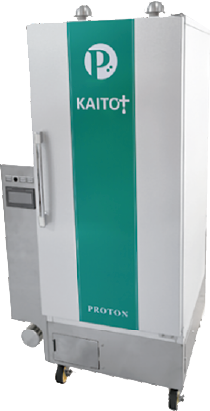

KAITO+
|
Compact and portable. It can be placed anywhere. |
650×600×1381mm | White wire shelf 420×420mm× 9 tiers × 25 pitch |
Electricity: Rated 2.2 kW, Three-phase 200V 20A, Hook type |
Water supply φ15.9 hose connection fitting or G1/2 stop Drainage G1/2 valve stop Options Pump-equipped water tank (Power: 100V) |
|

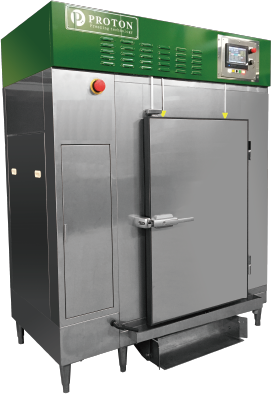

BF-60
|
Place frozen items inside at night, they will be de-frosted and kept in a refrigerated state by the foll-owing morning. | 1550×880×1950mm | 600×600mm 10 tiers 90 pitch |
Electricity: 7.5 kW Three-phase 200V 20A Hook type （or BF-100, directly connected to a 50A breaker） |
Boiler output 6.0 kW Water supply 13A connection fitting or G1/2 stop Drainage Condensation drainage during defrosting required |
VALUE

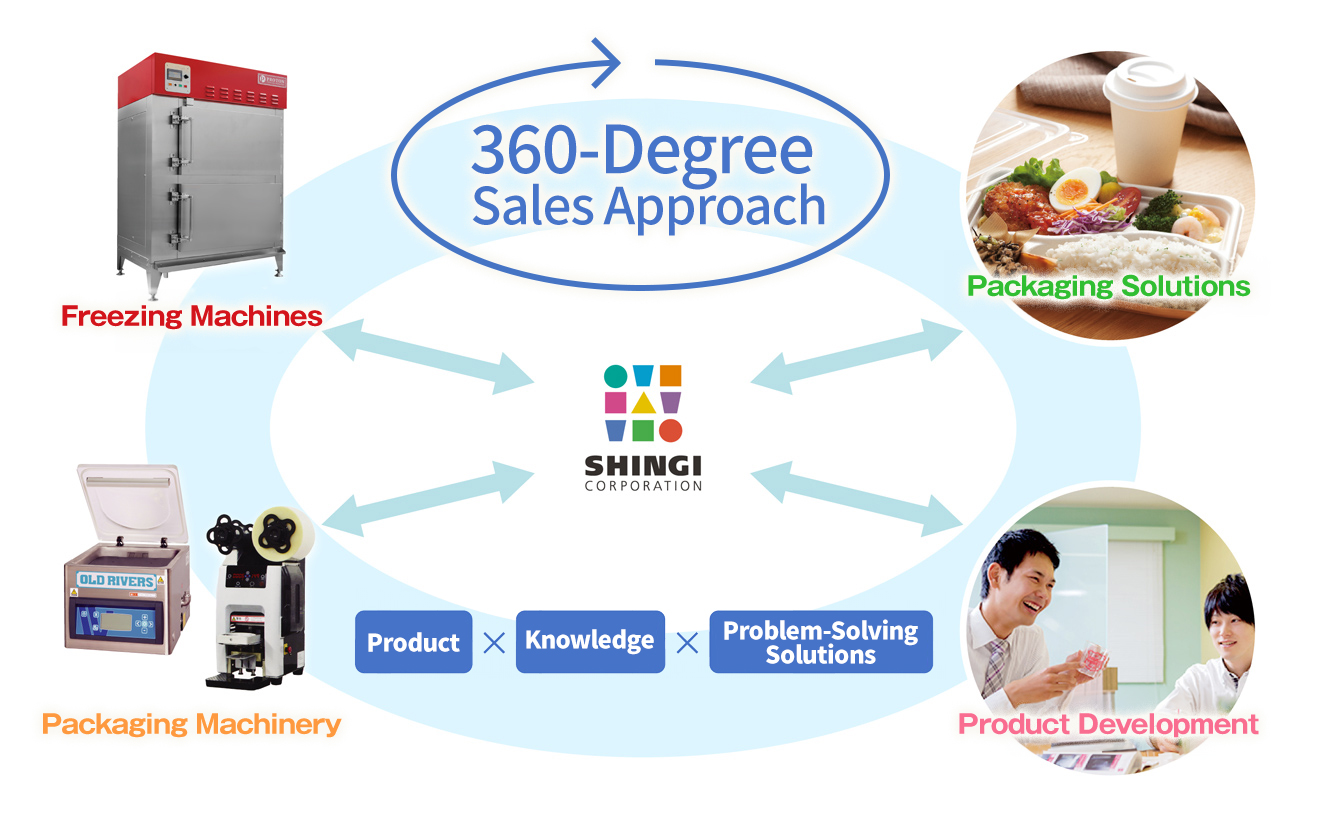

Strengths of Shingi
Shingi specializes in the planning, manufacturing, and sales of various food packaging solutions.
As a trading company capable of providing a one-stop procurement service, Shingi also acts as a manufacturer for its flagship products.
We have established a robust network of suppliers, currently collaborating with around 1,000 manufacturers.
This extensive network allows us to offer comprehensive solutions that include not only essential containers for frozen foods
but also packaging machinery such as filling machines, top sealers, and shrink wrappers.
Our strength lies in our 360° holistic approach to sales. We invite you to share your challenges with us so we can assist you effectively.
SUPPORT
Implementation Support
Would you like to bring your food products in for a freezing test?
During the freezing test, we will freeze your ingredients or food
using Proton Freezing technology, allowing you to sample and consider the results.
We have six freezing test rooms and a
test vehicle available nationwide!
-

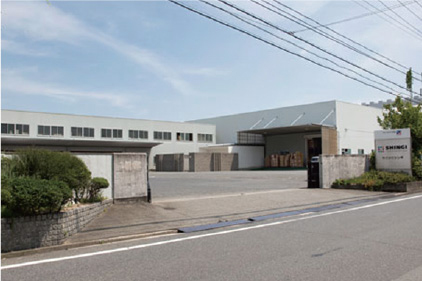

Hiroshima -

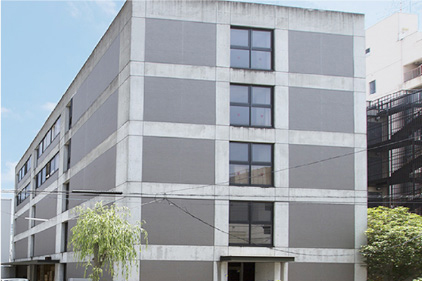

Tokyo -

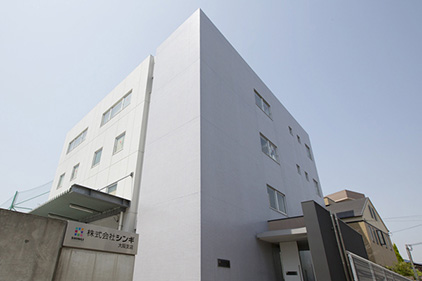

Osaka -

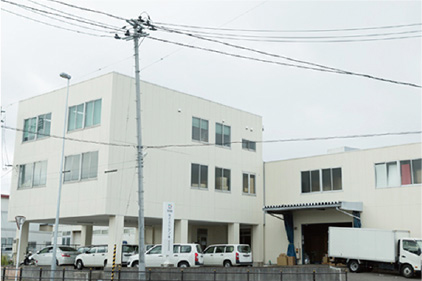

Sendai
-

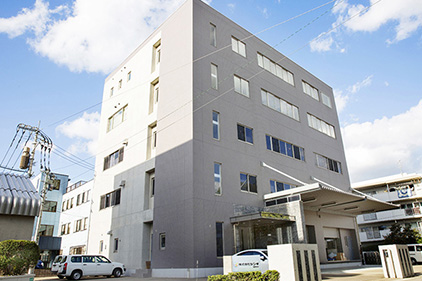

Fukuoka -
Sapporo -

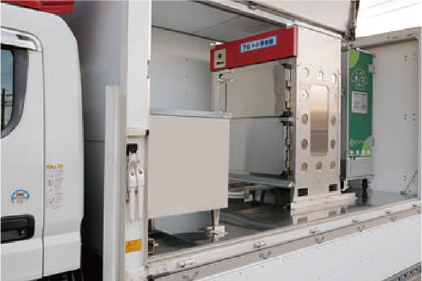

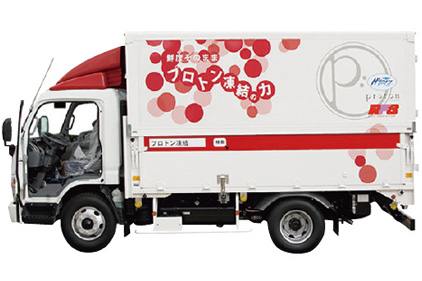

Test Vehicle
We provide comprehensive support,
including optimal container suggestions for freezing.
FAQ
Frequently Asked Questions
- 1 Can Proton freeze any type of food?
- Proton can achieve high reproducibility in freezing a wide range of products, including fresh fish, shellfish, crustaceans, seaweed, and meat. It can also effectively freeze processed meats, rice dishes, side dishes, noodles, soups, bread, and desserts. However, complete reproduction of vegetables and fruits is not possible, but their use in frozen form or as purees can enhance reproducibility through different processing methods.
- 2 Can I cook with ingredients that have been frozen using Proton and refreeze them with Proton afterward?
- Yes, it is possible.
- 3 When is the Proton freezing process considered complete?
- The Proton freezing process is complete when the center temperature of the food reaches -18°C.
- 4How should I store the ingredients after Proton freezing?
- Please store them in a freezer at temperatures below -18°C. Avoid temperature fluctuations during storage.
- 5 What daily maintenance is required?
- The Proton freezer allows for direct freezing of ingredients. Therefore, after use, it is necessary to clean the interior with neutral detergent and perform defrosting and drying of the cooling system to keep it hygienic.
- 6 Can it be used continuously for long periods?
- Continuous use for more than eight hours a day is not recommended due to frost build-up on the heat exchanger, which can weaken the cooling effect.
- 7 Is a defroster necessary?
- It is not mandatory, but it is recommended if defrosting is part of the process. For instance, sushi, when thawed naturally, will only reach around 20°C and remain cool. However, using a defroster allows it to be thawed at 35-40°C, providing a freshly prepared sensation.
- 8 What are the running costs?
- The electricity cost is approximately 2 yen per kilogram of freezing capacity. For the PF-15B, with a freezing capacity of 15 kg per hour, the electricity cost is about 30 yen per hour.
- 9 What consumables are required?
- 1.Door gaskets 2.Bearings in the blower section → Recommended to be replaced every 6 years as per manufacturer lifespan 3.Air intake filter (for PF-15B) → Depending on the environment, it can be washed and reused. If replacement is needed, please use genuine parts.4.Water softener filter for the defroster → Cycle varies based on environmental conditions.
- 10 What is the shelf life of food frozen with Proton?
- The storage period after Proton freezing varies based on the type of ingredients, products, packaging, and storage conditions. For detailed storage methods, please contact our staff.
